walt™ One Page Training

Logging in:

1. Grab a walt off the docking station.
2. A green LED light at the top of the radio indicated that it is fully charged.
3. To log in, tap the appropriate log in option:
   1. Phone Number
   2. Tap Badge
   3. Email
   4. Scan QR Code
4. If using the "Tap Badge" option, tap the back bottom half of your radio to your NFC sticker or badge to read it.
5. Enter your 4-digit pin that you chose when your account was created.

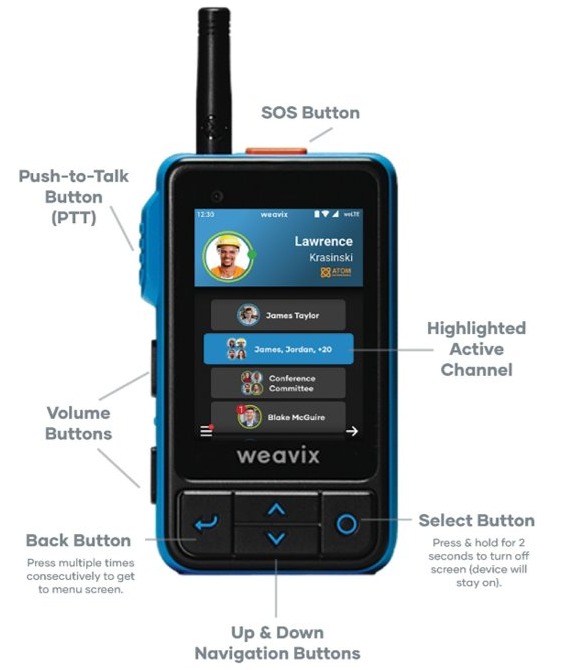

Navigating the Radio:

1. Your radio has a touchscreen that allows you to fully navigate all of your channels.
2. You can also use the buttons at the bottom to navigate.
   1. Use the up and down buttons to scroll through channels and messages.
   2. Use the back button to return to the previous screen.
   3. Use the circle button to select an object.
3. Push and hold the circle button for 2 seconds to turn the screen off, but still allows the radio to be on.

Using the Radio:

1. The Channel List screen shows all channels you have access to.
2. The channel that is highlighted blue is your active channel.
3. Pressing the PTT button will send your message to the highlighted blue channel.
4.  Tap on a channel or use the circle button to open the channel.
5. With the channel open, you can read and listen to all previous messages in the channel thread.
6. Pressing the PTT button with the channel open will send a message to the selected channel.
7. With the channel open, press the down button or swipe up from the bottom of the screen to see options to send a picture or video.

Radio Scan:

1. Radio Scan is a feature that allows you to listen to all channels that you are included on.
2. If Radio Scan is turned on, you will hear communication through all channels that you are included in.
3. If Radio Scan is turned off, you will only hear the channel that is highlighted in blue.
4. To toggle Radio Scan on or off, click the back button until you're on the menu screen and you can tap the Radio Scan button.
5. A line through means Radio Scan is off.

Create a New Channel:

**Only for allowed one on one channels.**

1. You can create new channels on your radio to talk to individuals or a group.
2. Tap the back button until you're on the menu screen and click the "Create Channel".
3. Select Individual or group.
4. Select People to show all people who you have access to communicate with.
5. Tap the person's name to add them to a channel.
6. Once you create the channel, push the PTT button for several seconds to start the channel with.
